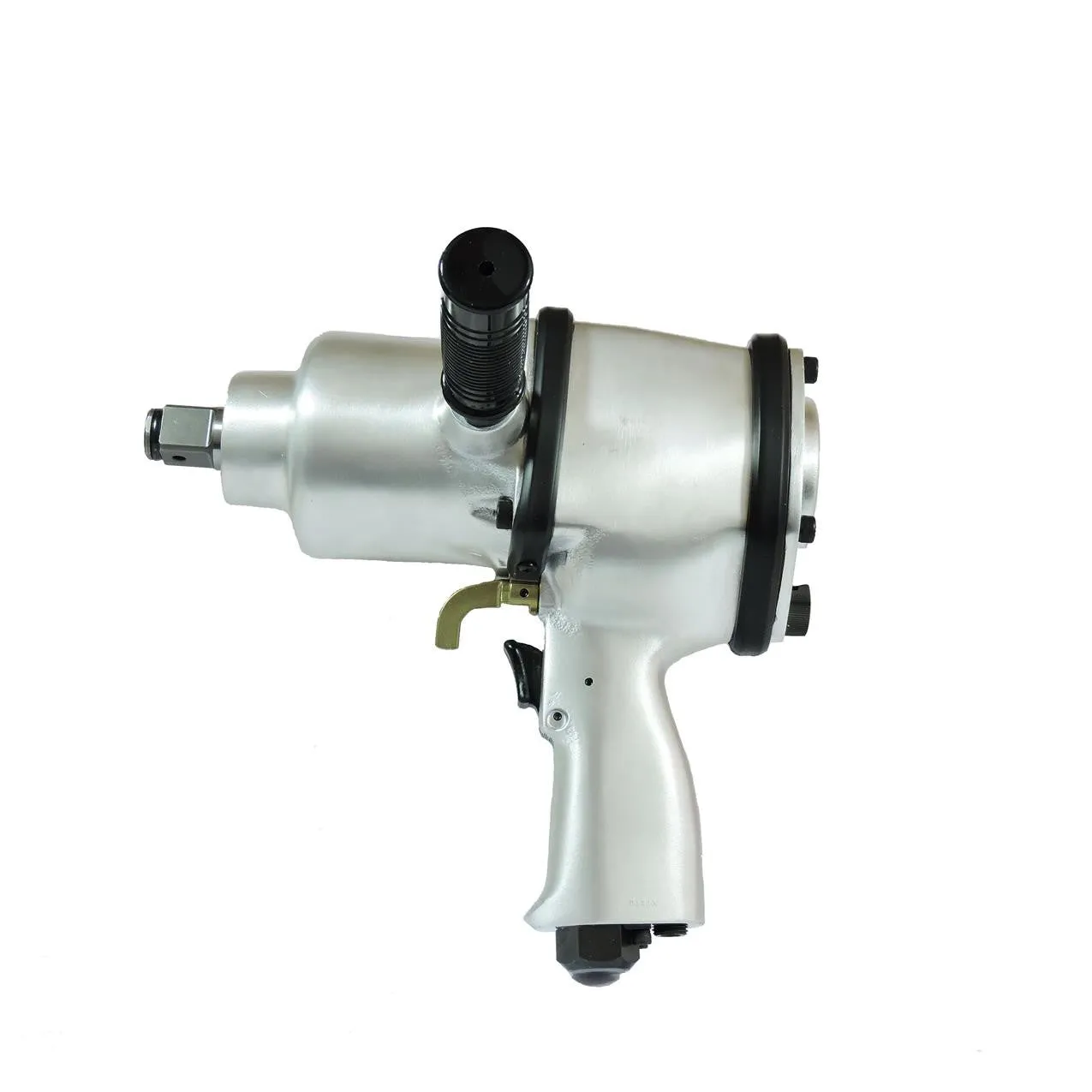

Introducing Zipp Air Tool Heavy Duty Industrial Impact line. These powerful Light weight Impactsξhave the power and durability to handle any task in almost any environment. The ZIW-14PH can handle your torque requirements from 190ξFt-lb up to 640ξFt-Lb. All at a 90 PSI operating pressure.
Specifications
| Drive size | 3/4 in. | 19.0 mm |
|---|---|---|
| Capacity bolt size | 7/8 in. | 22.0 mm |
| Recommended torque range | 190-640 ft-lb | 250-870 Nm |
| Weight(w/o socket) | 13.6 lbs. | 6.2 kg |
| Length(w/o socket) | 10 in. | 253.0 mm |
| Free speed | - | 3,800 r.p.m. |
| Impact per min. | - | 1,100 i.p.m. |
| Air consumption(Normal) | 21.2 c.f.m. | 0.60 mŒ_(Normal)/min |
| Hose size | 3/8 in. | 9.5 mm |
| Anvil Length(KW-20PI) | 1-1/4 in. | 31.0 mm |
| Anvil Length(KW-20PI-2) | 2-11/16 in. |
67.0 mm ξ |
Performance figures are at 0.62MPa(Pe) (90P.S.I.) air pressure.
- Vibration Levels Up to 4 Times Lower Than Other Impact Designs
- High Quality Japanese Industrial Tools
- One of the Best Power/Weight Ratios Produced in the World
- Reduction of Operator Fatigue Due to Light Weight, Minimum Vibration , and Low Noise Levels
- Increased Durability Achieved by Excellent Clutches and Minimum Air Consumption
- Built in 4 Position Air Regulator Controls Torque
